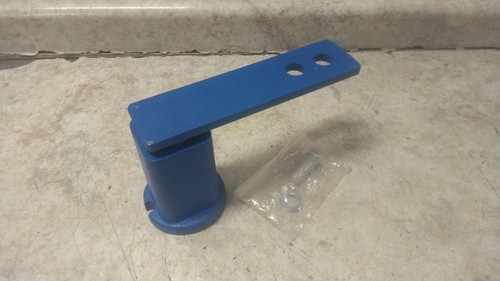

This is a Rosta elastomeric tensioner. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Elastomeric Tensioner |
| Manufacturer Part Number | 06011014 |
| Size | SE 38 |
| Arm Length to End | 205 mm |
| Arm Width | 60 mm |
| Maximum Arm Rotation | 30 ° |
| Arm Length to Normal Position Hole | 175 mm |
| Travel at Normal Position | 88 N |
| Tension Force at Normal Position | 1500 N |
| Arm Length to Hard Position Hole | 140 mm |
| Travel at Hard Position | 70 N |
| Tension Force at Hard Position | 1880 N |
| Maximum Travel at 20° | 60 mm |
| Maximum Travel at 30° | 88 mm |
| Mounting Bolt Thread Size | M16 |
| Idler Hole System of Measurement | Metric |
| Idler Bolt Thread Size | M16 |
| Arm Material | Steel |
| Housing Material | Steel |
| Insert Material | Rubber |
| Finish | Painted |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 78 °C |
| Application | Chain and Belt Drives |
