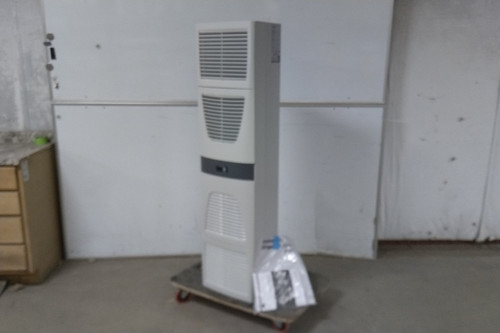

This Rittal 3328540 TopTherm Blue e wall-mounted enclosure cooling unit provides high-efficiency climate control for electrical cabinets and industrial enclosures. Operating at 400/460V 3-phase power with an integrated e-Comfort controller, it delivers up to 7,677 Btu/h (2.25 kW) cooling output in a durable sheet steel housing.
Inspection & Condition Notes:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. Minor cosmetic scuffs and light scratches are visible along the top edge and upper front section of the housing.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Enclosure Air Conditioner |
| Manufacturer Part Number | 3328540 |
| Control Type | Comfort Controller |
| Cooling Capacity - Maximum | 7,677 BtuH |
| Cooling Method | Refrigerant |
| Cooling Setpoint - Maximum | 131 °F |
| Cooling Setpoint - Minimum | 68 °F |
| Current | 2.2/2.4 A |
| Environment | Indoor Dust-Tight |
| Frequency | 50/60 Hz |
| Housing Color | Slate Gray |
| Housing Material | Sheet Steel |
| Mounting Type | Wall Mount |
| NEMA Enclosure Rating | 12 |
| Operating Temperature - Maximum | 131 °F |
| Operating Temperature - Minimum | 50 °F |
| Operating Voltage | 400/460V |
| Operation Mode | Cooling Only |
| Overall Depth | 11.61 in |
| Overall Height | 62.21 in |
| Overall Width | 15.75 in |
| Phase | Three |
| Power Consumption | 2.2 kW |
| Product Type | Cooling Unit |
| Refrigerant Type | R513A |
| Wiring Method | Fully Wired |
