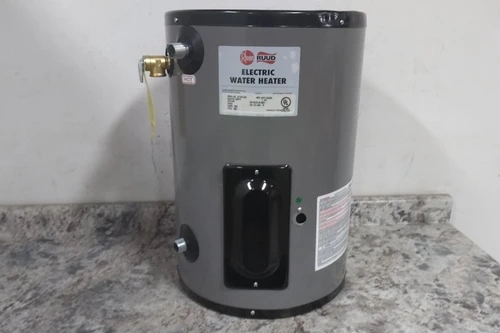

Rheem-Ruud EGSP10 208V 10-gallon commercial point-of-use electric water heater. Built for single-phase 208V electrical systems delivering 3,000 Watts with surface-mounted automatic thermostat control.
Inspection & Imperfections Noted:
Item was fully removed from packaging for inspection. The unit has visible cosmetic dents around the top black rim and bottom edge, as well as minor surface scuffs on the grey casing. Functional testing could not be completed as the unit requires complete installation. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Point-of-Use Electric Water Heater |
| Manufacturer Part Number | EGSP10 208V |
| Market | Commercial |
| Operating Voltage | 208V |
| Maximum Delivered Temperature | 170 °F |
| Maximum Recovery Flow Rate | 30 gph @ 40°F |
| Number of Elements | 1 |
| Tank Capacity | 10 gal |
| Maximum Water Pressure | 150 psi |
| Overall Width | 15.75 in |
| Overall Depth | 15.75 in |
| Overall Height | 22.87 in |
| Power Consumption | 3,000 W |
| Water Connection Location | Side |
| Current | 14.4 A |
| Phase | Single |
| Recovery Rate @ Rise | 10 gph @ 120°F; 12 gph @ 100°F; 15 gph @ 80°F; 20 gph @ 60°F; 30 gph @ 40°F; 9 gph @ 140°F |
| Thermal Efficiency | Not Rated |
| Tank Diameter | 15.75 in |
| Environment | Indoor |
| Tank Outer Shell Material | Steel |
| Tank Outer Shell Finish | Porcelain Enamel |
| Cold Inlet Size | 3/4 in |
| Hot Outlet Size | 3/4 in |
| Automatic Thermostat | Yes |
| Thermostat Mounting | Surface |
| Overheat Protection | Yes |
| Minimum Delivered Temperature | 110 °F |
| Height to Hot Outlet | 20.37 in |
| Height to Cold Inlet | 4.25 in |
| Tank Insulation Material | Polyurethane |
| Height to T and P Valve | 19.37 in |
| Cold Inlet Type | NPT |
| Hot Outlet Type | NPT |
| Mounting Type | Wall Mounting |
