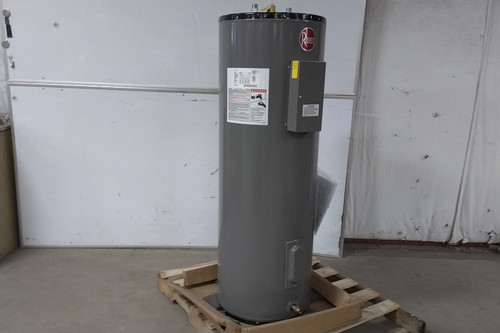

This is a Rheem ELD52-TB 50 Gallon Commercial Light-Duty Electric Water Heater. Engineered for reliable commercial performance, it features dual copper heating elements with 4500W/9000W output, 240V AC operation, surface-mounted automatic thermostats, and a terminal block electrical connection.
Key Specs & Features:
Inspection Notes:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some slight dents around the tank as well as some cosmetic scuffs and scratches. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Electric Tank Water Heater |
| Manufacturer Part Number | ELD52-TB |
| Market | Commercial |
| Tank Capacity | 50 gal |
| Operating Voltage | 240V AC |
| Power Consumption | 9,000 W |
| Phase | Single; Three |
| Recovery Rate @ Rise | 10 gph @ 120°F; 12 gph @ 100°F; 15 gph @ 80°F; 20 gph @ 60°F |
| Max. Recovery Flow Rate | 30 gph @ 40°F |
| First Hour Rating | 63 gal |
| Tank Outer Shell Material | Steel |
| Element Material | Copper; Magnesium Oxide |
| Tank Outer Shell Finish | Porcelain Enamel |
| Equivalent BtuH | 30,710 BtuH |
| Thermostat Mounting | Surface |
| Electrical Connection Type | Terminal Block |
| Tank Insulation Material | Polyurethane |
| Max. Water Pressure | 150 psi |
| Overall Width | 20.3 in |
| Overall Depth | 26 in |
| Overall Height | 58.6 in |
| Tank Diameter | 20.25 in |
| Cold Inlet Type | NPT |
| Hot Outlet Type | NPT |
| Cold Water Inlet Size | 3/4 in |
| Hot Water Outlet Size | 3/4 in |
| Number of Elements | 2 |
| Included Valve Type | Drain |
| Automatic Thermostat | Yes |
| Thermal Efficiency | 93 % |
