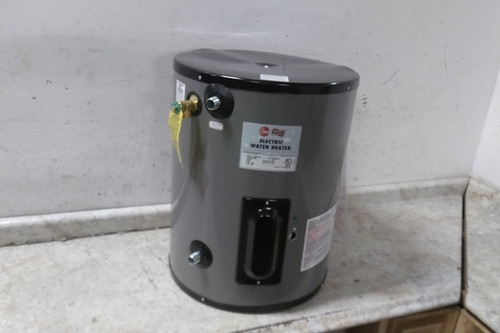

This Rheem EGSP20 commercial electric water heater features a 19.9-gallon capacity, 208V single-phase electrical configuration, and 4,500W power consumption. Designed for point-of-use commercial applications requiring reliable hot water delivery.
Inspection & Condition Notes:
We have inspected this item and we do not have the capability to fully test it. It has not been electrically or plumbing tested as it requires professional hardwired installation. There are large dents along the side casing and bottom rim, as well as cosmetic scratches on the top cover and body. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Electric Water Heater |
| Sub-brand | Point of Use |
| Manufacturer Part Number | EGSP20 |
| Market | Commercial |
| Operating Voltage | 208V |
| Maximum Delivered Temperature | 170 °F |
| Maximum Recovery Flow Rate | 46 gph @ 40°F |
| Number of Elements | 1 |
| Tank Capacity | 19.9 gal |
| Maximum Water Pressure | 150 psi |
| Overall Width | 19.75 in |
| Overall Depth | 19.75 in |
| Overall Height | 25.12 in |
| Power Consumption | 4,500 W |
| Water Connection Location | Side |
| Current | 21.6 A |
| Phase | Single |
| Recovery Rate @ Rise | 13 gph @ 140°F; 15 gph @ 120°F; 18 gph @ 100°F; 23 gph @ 80°F; 30 gph @ 60°F; 46 gph @ 40°F |
| Thermal Efficiency | Not Rated |
| Tank Diameter | 19.75 in |
| Environment | Indoor |
| Tank Outer Shell Material | Steel |
| Tank Outer Shell Finish | Porcelain Enamel |
| Cold Inlet Size | 3/4 in |
| Hot Outlet Size | 3/4 in |
| Automatic Thermostat | Yes |
| Thermostat Mounting | Surface |
| Overheat Protection | Yes |
| Minimum Delivered Temperature | 110 °F |
| Height to Hot Outlet | 22.62 in |
| Height to Cold Inlet | 5.12 in |
| Tank Insulation Material | Polyurethane |
| Height to T and P Valve | 19.62 in |
| Cold Inlet Type | NPT |
| Hot Outlet Type | NPT |
| Mounting Type | Wall Mounting |
