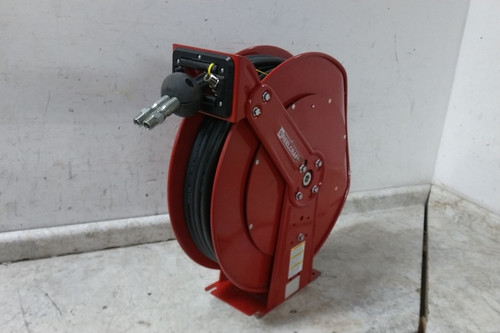

Reelcraft TH88050 OMP Twin Hydraulic Hose Reel
This heavy-duty spring-driven dual hydraulic hose reel is built for medium-pressure hydraulic applications up to 2,000 PSI. Constructed from durable steel with a corrosion-resistant powder-coated finish, it includes a 1/2 in. I.D. x 50 ft. twin hydraulic hose assembly with attached hose stop. Features a dual-pedestal arm design, locking latch mechanism, and compact profile ideal for vehicle or stationary mounting.
Inspection & Condition Details:
We have inspected this item and the spring rewind mechanism and return function operate properly, with the drum rotating a full turn. There are some cosmetic scuffs and scratches across the red powder coating, a bent section on one side of the hose drum, and one mounting foot flange bent upward.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Dual Reel Spring Return Hose Reel |
| Hose Reel Primary Application | Hydraulic Oil |
| Maximum Operating Pressure | 2,000 psi |
| Hose Capacity | 50 ft (1/2 in I.D.) |
| Drive Type | Spring Return |
| Enclosed | No |
| Reel Material | Steel |
| Speed Limited Retraction | No |
| Overall Height | 25-3/8 in |
| Overall Length | 24 in |
| Overall Width | 12-7/8 in |
| For Dual Hose | Yes |
| Hose Reel Type | Vehicle Mount Hose Reel; Wall Mount Hose Reel |
| Base Motion Type | Stationary |
| Pedestal Type | Dual Pedestal |
| Number of Guide Arms | Double Arm |
| Number of Mount Holes | 4 |
| Reel Color | Red |
| Swivel Material | Steel |
| Swivel Inlet Type | NPT |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2 in |
| Swivel Outlet Thread Size | 1/2 in - 14 |
| Swivel Outlet Type | NPT |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2 in |
| Swivel Inlet Thread Size | 1/2 in - 14 |
| Reel Width | 8-1/8 in |
| Reel Finish | Powder Coated |
| Weight | 115 lb |
| Latch Type | Locking |
| Bearing Construction | Ball |
| Maximum Operating Temperature | 210 °F |
| Fasteners Included | No |
| Spiral Hose Guard | No |
| Includes Leader Hose | No |
| Minimum Operating Temperature | -40 °F |
| Mount Base Height | 12 in |
| Mount Base Width | 7-3/8 in |
| Mounting Hole Center to Center Width | 6 in |
| Mounting Hole Center to Center Height | 10 in |
| Mount Hole Diameter | 1/2 in |
| Reel Diameter | 24 in |
| Fitting Type | NPT x NPT |
| Fitting Size | 1/2 in x 1/2 in |
| Hose End Configuration | 1/2 in MNPT x 1/2 in MNPT |
| Overall Dimensions | 24 in L x 12-7/8 in W x 25-3/8 in H |
| Combination Type | Hydraulic/Hydraulic |
| Feeder Cord Ending | None |
| Fitting Gender | Male x Male |
| Hose 1 Color | Black |
| Hose 1 Cover Material | Polyurethane |
| Hose 1 Fitting A Gender | Male |
| Hose 1 Fitting A Material | Steel |
| Hose 1 Fitting A Size | 1/2 in |
| Hose 1 Fitting A Type | NPT |
| Hose 1 Fitting B Gender | Male |
| Hose 1 Fitting B Material | Steel |
| Hose 1 Fitting B Size | 1/2 in |
| Hose 1 Fitting B Type | NPT |
| Hose 1 Inside Diameter | 1/2 in |
| Hose 1 Length | 50 ft |
| Hose 1 Outside Diameter | 13/16 in |
| Hose 1 Tube Material | Polyester/Polyurethane |
| Hose 2 Color | Black |
| Hose 2 Cover Material | Polyurethane |
| Hose 2 Inside Diameter | 1/2 in |
| Hose 2 Length | 50 ft |
| Hose 2 Outside Diameter | 13/16 in |
| Hose 2 Tube Material | Polyester/Polyurethane |
| Hose Return Speed Control | No |
| Includes Cord | No |
| Number of Conductors | 0 |
| Number of Outlets | 2 |
| Seal Material | Nitrile |
| Country of Origin | USA |
