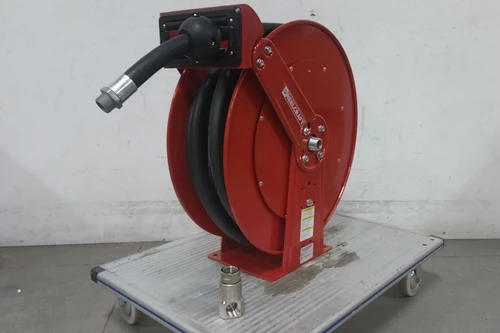

The Reelcraft FD84050 OLP is an ultimate-duty spring-retractable hose reel engineered for heavy-duty fuel delivery applications. Equipped with a 1 in. I.D. x 50 ft. Continental gasoline/fuel hose, this reel features a dual-pedestal carbon steel frame, full-flow stress-free swivel, and durable powder-coated finish designed for mobile or stationary installations.
We have inspected this item and the hose extends/retracts. We do not have the capability to test the unit any further. There are some slight bends along the edge of the reel. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Spring Return Hose Reel |
| Hose Reel Primary Application | Fuel |
| Maximum Operating Pressure | 250 psi |
| Hose Capacity | 50 ft (1 in I.D.) |
| Drive Type | Spring Return |
| Enclosed | No |
| Hose Inside Dia. | 1 in |
| Hose Length | 50 ft |
| Reel Material | Carbon Steel |
| Speed Limited Retraction | No |
| Overall Height | 25-3/8 in |
| Overall Length | 24 in |
| Overall Width | 15-3/4 in |
| Corrosion-Resistant | Yes |
| For Dual Hose | No |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 1 in |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 1 in |
| Hose Fitting B Type | NPT |
| Hose Outside Dia. | 1-1/2 in |
| Hose Reel Type | Ceiling; Floor; Vehicle; Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Base Motion Type | Stationary |
| Pedestal Type | Dual Pedestal |
| Number of Guide Arms | Double Arm |
| Number of Mount Holes | 4 |
| Reel Color | Red |
| Twin Hose Compatible | No |
| Swivel Material | Nickel Plated Steel |
| Swivel Inlet Type | NPT |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1 in |
| Swivel Outlet Thread Size | 1 in - 11-1/2 |
| Swivel Outlet Type | NPT |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1 in |
| Swivel Inlet Thread Size | 1 in - 11-1/2 |
| Reel Width | 15-3/4 in |
| Reel Finish | Powder Coated |
| Weight | 120 lb |
| Latch Type | Spring Loaded |
| Bearing Construction | Ball |
| Maximum Operating Temperature | 150 °F |
| Fasteners Included | No |
| Spiral Hose Guard | No |
| Includes Leader Hose | No |
| Minimum Operating Temperature | -25 °F |
| Mount Base Height | 12 in |
| Mount Base Width | 9-11/32 in |
| Mounting Hole Center to Center Width | 7-7/8 in |
| Mounting Hole Center to Center Height | 10-1/2 in |
| Mount Hole Diameter | 1/2 in |
| Reel Diameter | 15-1/2 in |
| Fitting Type | NPT x NPT |
| Fitting Size | 1 in x 1 in |
| Hose End Configuration | 1 in MNPT |
| Overall Dimensions | 24 in L x 15-3/4 in W x 25-3/8 in H |
| Country of Origin | USA |
