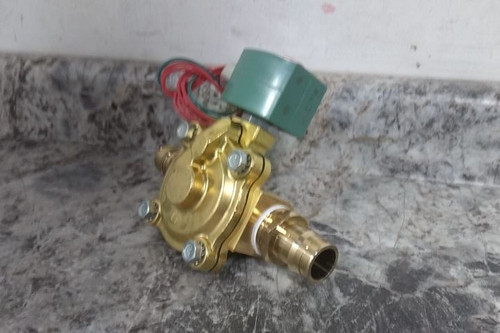

This is a Redhat solenoid valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Solenoid Valve |
| Manufacturer Part Number | K210G004LFXX 24/DC |
| For Media | Air; Ammonia; Cryogenic Fluids; Fuel Oil; Hot Water; Inert Gases; Light Oil; Liquid Propane Gas; Natural Gas; Oxygen; Steam; Water |
| Application | Air Compressors; Car Wash Equipment; Industrial Water Control; Laundry Equipment; Pumps |
| Valve Type | High Flow |
| Operation Type | Pilot Operated |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | NBR/PTFE |
| Nominal Pipe Size | 1 in |
| Voltage | 24VDC |
| Wattage | 11.6 W |
| Coefficient of Volume (Cv) | 12 |
| Orifice Diameter | 1 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential - Water | 100 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Air/Inert Gas | 350 psi |
| Max. Fluid Temperature | 180 °F |
| Min. Ambient Temperature | 32 °F |
| Max. Ambient Temperature | 125 °F |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Operating Environment | Corrosive; Hazardous; Indoor; Outdoor |
| Valve Configuration | Normally Closed |
