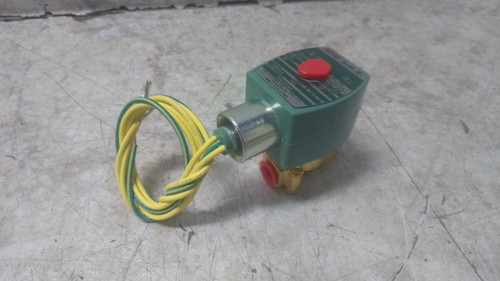

This is a Redhat solenoid valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Solenoid Valve |
| Manufacturer Part Number | 8262H022LF 24/DC |
| For Media | Aggressive Gases; Aggressive Liquids; Air; Ammonia; Biodiesel Fuel; Cryogenic Fluids; Fuel Oil; Hot Water; Inert Gases; Light Oil; Liquid Propane Gas; Natural Gas; Oxygen; Steam; Water |
| Application | Boilers; Burners; Car Wash Equipment; Compressors; Dishwashing and Laundry Equipment; Food Processing; Pumps |
| Valve Type | High Flow |
| Mounting Orientation | Horizontal or Vertical |
| Operation Type | Direct Acting |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | NBR |
| Nominal Pipe Size | 1/4 in |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 24V DC |
| Wattage | 10.6 W |
| Electrical Connections | 16" Leads |
| Coefficient of Volume (Cv) | 0.3 |
| Orifice Diameter | 1/8 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential - Water | 110 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Light Oil | 90 psi |
| Max. Operating Pressure Differential - Air/Inert Gas | 130 psi |
| Max. Fluid Temperature | 180 °F |
| Min. Ambient Temperature | -13 °F |
| Max. Ambient Temperature | 131 °F |
| Response Time | 1 sec |
| Includes Seal | Yes |
| Includes Coil | Yes |
| Coil Insulation Class | H |
| Overall Height | 2-31/32 in |
| Overall Length | 1-5/16 in |
| Overall Width | 1-11/16 in |
| Operating Environment | Corrosive; Hazardous; Indoor; Outdoor |
| IP Rating | IP65 |
| NEMA Rating | 4X |
| Valve Configuration | Normally Closed |
