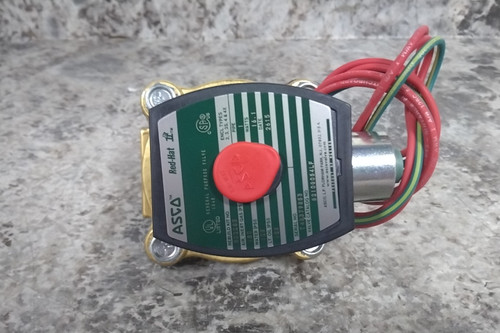

The ASCO Red-Hat II 8210G054LF is a 1-inch NPT 2-way normally closed high-flow solenoid valve designed for general service applications including air, inert gas, water, and light oil. Featuring lead-free brass construction, pilot-operated mechanism, and a watertight NEMA 1, 2, 3, 3S, 4, and 4X enclosure, this valve provides reliable fluid control in industrial and commercial installations operating at 220/240V AC 50/60Hz.
Inspection Notes:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. The original manufacturer packaging shows light handling wear and a crushed corner.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Solenoid Valve |
| Manufacturer Part Number | 8210G054LF 240/60/220/50 |
| For Media | Air; Inert Gases; Light Oil; Water |
| Application | Air Compressors; Car Wash Equipment; Industrial Water Control; Laundry Equipment; Pumps |
| Valve Type | High Flow |
| Mounting Orientation | Vertical |
| Operation Type | Pilot Operated |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | NBR |
| Nominal Pipe Size | 1 in |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 220V AC; 240V AC |
| Wattage | 16.1 W |
| Frequency | 60 Hz |
| Electrical Connections | 1/2" Conduit Hub |
| Coefficient of Volume (Cv) | 13 |
| Orifice Diameter | 1 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential - Water | 125 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Light Oil | 125 psi |
| Max. Operating Pressure Differential - Air/Inert Gas | 350 psi |
| Max. Fluid Temperature | 180 °F |
| Min. Ambient Temperature | 14 °F |
| Max. Ambient Temperature | 140 °F |
| Response Time | 1 sec |
| Coil Enclosure | Watertight |
| Operating Environment | Indoor; Outdoor |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Valve Configuration | Normally Closed |
