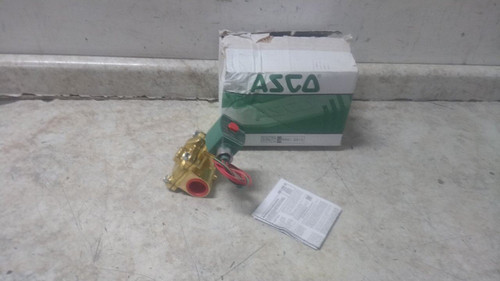

This is a Redhat solenoid valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Solenoid Valve |
| Manufacturer Part Number | 8210G004LF 24/DC |
| For Media | Air; Inert Gases; Light Oil; Water |
| Application | Air Compressors; Car Wash Equipment; Industrial Water Control; Laundry Equipment; Pumps |
| Valve Type | High Flow |
| Mounting Orientation | Vertical |
| Operation Type | Pilot Operated |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | NBR |
| Nominal Pipe Size | 1 in |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 24VDC |
| Wattage | 6.1 W |
| Electrical Connections | 1/2" Conduit Hub |
| Coefficient of Volume (Cv) | 13 |
| Orifice Diameter | 1 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential - Water | 150 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Light Oil | 100 psi |
| Max. Operating Pressure Differential - Air/Inert Gas | 125 psi |
| Max. Fluid Temperature | 180 °F |
| Min. Ambient Temperature | 14 °F |
| Max. Ambient Temperature | 140 °F |
| Response Time | 1 sec |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Overall Height | 5-21/32 in |
| Overall Length | 3-3/8 in |
| Overall Width | 3-3/4 in |
| Operating Environment | Indoor; Outdoor |
| IP Rating | IP65 |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Valve Configuration | Normally Closed |
