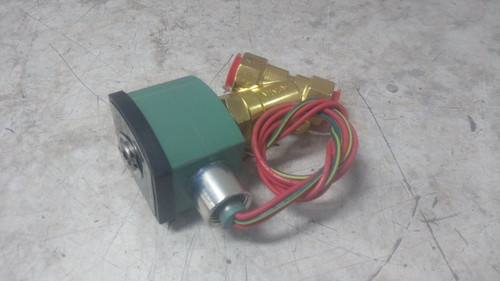

This is a Redhat solenoid valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Solenoid Valve |
| Manufacturer Part Number | 8030G071 |
| For Media | Air; Inert Gases; Natural Gas; Water |
| Application | Low Pressure General Service; Vacuum |
| Valve Type | Compact |
| Mounting Orientation | Horizontal or Vertical |
| Operation Type | Direct Acting |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | NBR |
| Nominal Pipe Size | 1/2 in |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 120VAC |
| Wattage | 20.1 W |
| Frequency | 60 Hz |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| Coefficient of Volume (Cv) | 2.2 |
| Orifice Diameter | 7/16 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential - Water | 15 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Air/Inert Gas | 15 psi |
| Max. Fluid Temperature | 200 °F |
| Min. Ambient Temperature | 14 °F |
| Max. Ambient Temperature | 140 °F |
| Coil Enclosure | WatertightWithout Junction Box |
| Coil Insulation Class | F |
| Overall Height | 4-3/8 in |
| Overall Length | 2-1/4 in |
| Overall Width | 2 in |
| Operating Environment | Indoor; Outdoor |
| NEMA Rating | 7 |
| Valve Configuration | Normally Open |
