The Radnor RAD64003029 (Model G150-60-540) is a light-duty single-stage oxygen pressure regulator designed for general purpose oxy-fuel applications. It features a machined brass body, high-contrast 2-inch gauges, and a standard CGA 540 inlet connection.

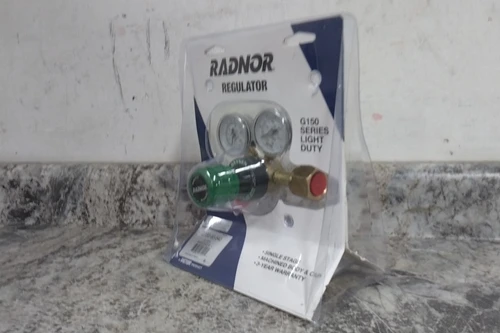

We have inspected this item and we do not have the capability to install the unit to fully test it. There are some slight cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Gas Regulator |
| Manufacturer Part Number | RAD64003029 |
| For Gas Type | Oxygen |
| Mounting Type | Cylinder |
| Number of Stages | Single Stage |
| CGA Number | CGA 540 |
| Inlet Connection | CGA 540 |
| Inlet Connection Type | NGO |
| Inlet Connection Gender | Male |
| Inlet Connection Size | 0.908"-14 |
| Inlet Thread Direction | Right Hand |
| Inlet Pressure (Maximum) | 3,000 psig |
| Outlet Connection | 9/16"-18 M RH |
| Outlet Connection Type | UNF |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 9/16"-18 |
| Outlet Thread Direction | Right Hand |
| Outlet Pressure (Maximum) | 60 psig |
| Outlet Pressure (Minimum) | 2 psig |
| Body Material | Brass |
| Diaphragm Material | Neoprene |
| Gauge Diameter | 2 in |
| Overall Depth | 3 in |
| Overall Height | 4 in |
| Overall Width | 4.5 in |
| Application | General Purpose |
