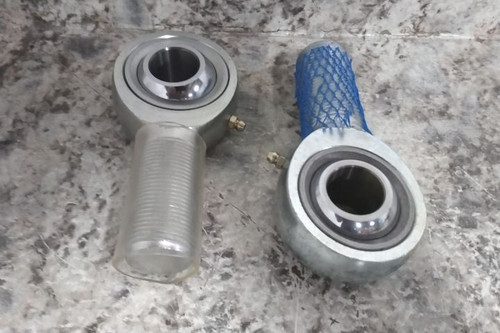

This is a package of 2 QA1 precision greasable rod ends. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Precision Greasable Rod End |
| Manufacturer Part Number | KML16Z |
| Bore Diameter | 1 in |
| Bore Diameter Tolerance | -0.0005/+0.0015 in |
| Head Outside Diameter | 2-3/4 in |
| Head Width | 1 in |
| Overall Length | 5-1/2 in |
| Inner Ring Width | 1.375 in |
| Shank Thread Gender | Male |
| Shank Thread Size | 1-1/4"-12 |
| Shank Thread Length | 2-1/8 in |
| Shank Thread Direction | Left Hand |
| Maximum Ball Swivel | 17 ° |
| Static Radial Load Capacity | 43,541 lbf |
| Housing Material | Carbon Steel |
| Housing Material Finish | Zinc Plated |
| Race Material | Alloy Steel |
| Ball Material | 52100 Steel Spherical |
| Ball Material Grade | 52100 |
| Ball Diameter | 1.875 in |
| Application | Automotive |
| Rod End Type | Spherical Rod End |
| Resistance Properties | Corrosion Resistant; Wear Resistant |
| Greasable | Yes |
