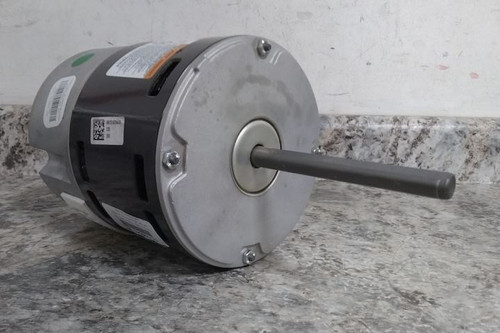

This is a Prostock OEM replacement motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | OEM Replacement Motor |
| Manufacturer Part Number | 51-106541-20 |
| Product Type | OEM Replacement Motor |
| Compatible Brand | RUUD; Weatherking |
| Motor Design | Capacitor-Start |
| Motor Enclosure Type | Open Air Over |
| Nameplate Horsepower @ 60 Hz | 1/2 hp |
| Nameplate RPM @ 60 Hz | 1,050 RPM |
| Nameplate Voltage @ 60 Hz | 115V AC |
| Phase | Single |
| Frame Size | 48Y |
| Full Load Current @ 60 Hz | 5.8 A |
| Shaft Diameter | 1/2 in |
| Shaft Length | 4-1/2 in |
| Overall Length | 11-13/16 in |
| Usable @ 200V | Not Usable at 200V |
| Motor Shaft Rotation | CW/CCW |
| Usable @ 208V | Not Usable at 208V |
| Number of Speeds | 1 |
| Mounting Type | Belly Band |
| Motor Thermal Protection | Auto |
| Bearing Type | Ball |
| Body Diameter | 5.6 in |
| Length Less Shaft | 7-5/16 in |
| Application | Fan/Blower |
| Nameplate Service Factor @ 60 Hz | 1 |
| Shaft Design | Keyed |
