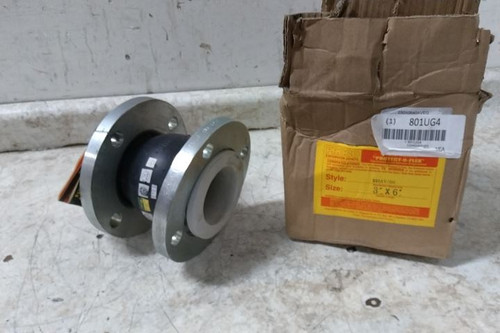

This is a Proco Products expansion joint. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs on the rubber part. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Expansion Joint |
| Bolt Circle Diameter | 6 in |
| Bolt Hole Size | 5/8 in |
| Bolt Hole Threading | Unthreaded |
| Burst Pressure | 900 psi |
| Compression Distance | 1/2 in |
| Connection Type | Flanged |
| Expansion Distance | 3/8 in |
| Expansion Joint Type | Single Bulb |
| Flange Diameter | 7-1/2 in |
| Flange Material | Steel |
| Flange Material Finish | Zinc-Plated |
| For Fluid Type | Food Grade for Fluids and Solids Low Velocity |
| Joint Material | EPDM |
| Maximum Off-Center Angle | 14 ° |
| Maximum Operating Pressure | 225 psi @ 170F |
| Maximum Operating Temperature | 250 °F |
| Maximum Vacuum Pressure | 26 in Hg @ 170F |
| Minimum Operating Temperature | -20 °F |
| Number of Bolt Holes | 4 |
| Offset Distance | 1/2 in |
| Overall Length | 6 in |
| Pipe Size | 3 in |
| Reinforcement Material | Rubber Impregnated Nylon |
