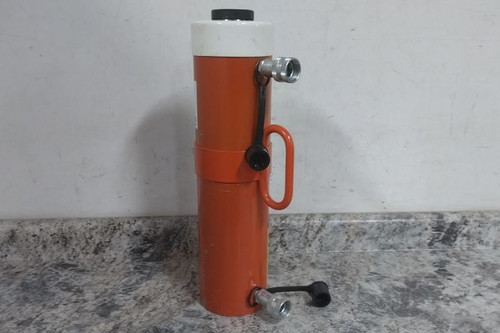

This is a Power Team standard hydraulic ram. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Standard Hydraulic Ram |
| Manufacturer Part Number | RD5513 |
| Single Acting/Double Acting | Double Acting |
| Cylinder Type | High Cycle |
| Body Material | Steel |
| Nominal Capacity | 55 ton |
| Stroke Length | 13-1/8 in |
| Nominal Stroke Length | 13-1/8 in |
| Effective Push Area | 11.04 sq in |
| Oil Capacity Push | 144.9 cu in |
| Retracted Height | 19.84 in |
| Extended Height | 32.97 in |
| Plunger Dia. | 2.63 in |
| Collar Thread Size | 5"-12 |
| Base Bolt Circle Dia. | 3.5 in |
| Base Mounting Thread Size | 5/8"-11 |
| Weight | 90 lb |
| Bore Dia. | 3.75 in |
