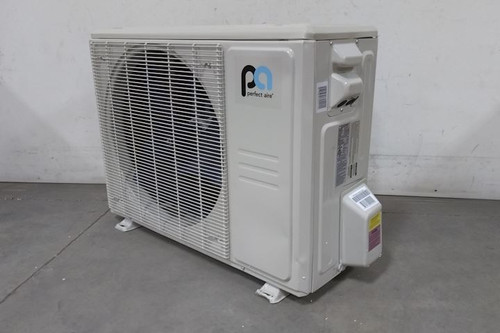

This is a Perfect Aire ductless mini-split outdoor unit. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some dents/bends on the coil protectors and the plastic cover is cracked. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Ductless Mini-Split Outdoor Unit |
| Manufacturer Part Number | 3PAMSH24B-SZO |
| Number Of Indoor Units Supported | 1 |
| Operation Mode - HVAC | Cooling/Heating |
| Cooling Capacity | 24,000 BtuH |
| SEER | 16.5 |
| Heating Method | Heat Pump |
| Heating Capacity - Heat Pump | 24,000 BtuH |
| Heating Watts | 2,475 W |
| Air Flow | 1764.71 cfm |
| EER | 8.9 |
| HSPF | 16.5 BTU/Wh |
| Amps | 11.3 A; 12.3 A |
| Voltage | 230V AC |
| Phase | 1 |
| Hz | 60 Hz |
| Control Type | Electronic |
| Control Voltage | 208 to 230V AC |
| Dehumidification Rate | 5 pt/hr |
| Programming Capability | 24-hr. On/Off Timer |
| Remote Control Functions | Full Function |
| Smart Connectivity | Cellular Control; Wifi Assistant Enabled; WiFi Control |
| Seacoast Corrosion Protection | Front and Rear Coil |
| Outdoor Sound Level | 59.5 dBA |
| Number of Speeds | 3 |
| Suction Line Size | 5/8 in |
| Liquid Line Size | 3/8 in |
| Min./Max. Line Length - Single Run | 10 to 82 ft |
| Max. Line Length - Total System | 98 ft |
| Max. Vertical Line Length | 98 ft |
| Compressor Type | Rotary |
| Refrigerant Type | R-410A |
| Refrigerant Precharge | 62.8 fl oz |
| Max. Time Delay Fuse Amps | 30 A |
| Outdoor Height | 26-1/2 in |
| Outdoor Width | 35 in |
| Outdoor Depth | 13-1/2 in |
| Key Features | Electronic Control Panel; WiFi-Capable |
| For Use With | 3PAMSH24B-SZW; Single Zone Indoor Unit (Sold Separately) |
