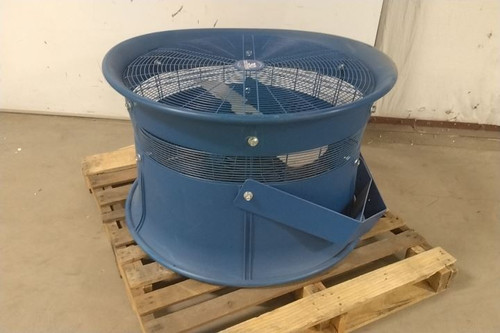

This is a Patterson high-velocity industrial fan. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The housing is bent/dented. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | High-Velocity Industrial Fan |
| Blade Diameter | 30 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 277V AC |
| Phase | 1 |
| Air Flow | 12,000 cfm |
| Motor HP | 1 hp |
| RPM | 1800/1200 RPM |
| Amps | 5.6 A @ 277 V |
| Fan Mounting Location | Ceiling; Column; Floor; Wall |
| Air Velocity @ 10 Ft. | 1650 fpm |
| Air Velocity @ 20 Ft. | 850 fpm |
| Air Velocity @ 40 Ft. | 550 fpm |
| Air Velocity @ 60 Ft. | 400 fpm |
| Air Velocity @ 80 Ft. | 350 fpm |
| Sound Level | 82.2 dBA @ 20 ft; 85.5 dBA @ 3 ft |
| Max. Ambient Temp. | 104 °F |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Insulation | Class F |
| Motor Type | Continuous Duty |
| Thermal Protection | Automatic Reset |
| Bearing Type | Ball |
| Fan Power Source | Hardwired |
| Height | 38-1/8 in |
| Width | 37 in |
| Depth | 22 in |
| Number of Blades | 2 |
| Blade Material | Aluminum |
| Fan Blade Finish | Mill |
| Fan Housing Material | Polypropylene |
| Color | Blue |
| Guard Material | Blue Powder Coated Spiral Wound Steel |
| Wire Guard Finish | Powder Coated |
| Features | Long Air Throw |
| Housing Finish - Fans | Matte |
| Head Tilt Adjustment | 15° |
| Drive Type | Direct Drive |
| Battery Operated - Fans | No |
| Product Type | High Velocity Air Cannon Fan |
