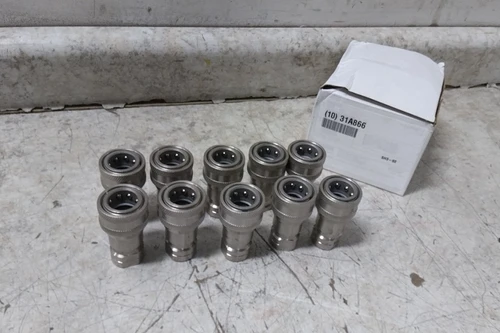

This is a package of 10 Parker hydraulic quick connect hose couplings. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Hydraulic Quick Connect Hose Coupling |
| Coupling Component | Socket |
| Body Material | 303 Stainless Steel |
| Coupling Size | 3/8 in |
| Hose Fitting Gender | Female |
| Max. Working Pressure @ 70 F | 5,000 psi |
| Max. Flow Rate | 23 lpm |
| Coupling Locking Type | Sleeve |
| Connection Type | NPTF |
| Valve Type | Poppet |
| Overall Length | 2-31/64 in |
| Thread Size | 3/8"-18 |
| Finish/Coating | Plain |
| Sleeve Material | 303 Stainless Steel |
| Seal Material | Nitrile |
| Bearing Material | Stainless Steel |
| Hansen Interchange | LL3-H21 |
| Parker Interchange | SH3-62 |
| Safeway Interchange | SS105-3 |
| Snap-Tite Interchange | S72C6-6F |
| Fitting Type | Female NPTF |
| Max. Outside Dia. | 1-13/32 in |
| Series | 60 |
| For Use With | ISO 7241-1 Series B Nipple |
