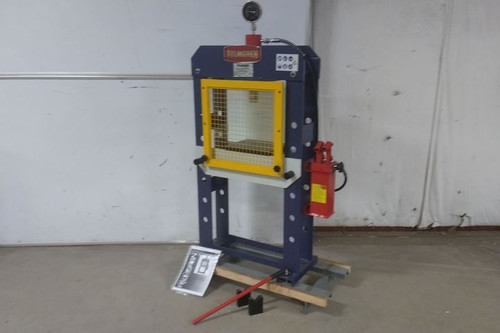

This is a Palmgren manual hydraulic press. Please refer to the technical specifications in the listing for more information.
We have inspected this item and the press moves up/down. We do not have the capability to test the unit any further. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Press |
| Operation | Manual |
| Frame Type | H-Frame |
| Frame Material | Iron |
| Capacity | 25 ton |
| Cylinder Type | Single Acting |
| Cylinder Stroke | 10 in |
| Press Bed Width | 19-1/4 in |
| Press Bed Depth | 8-1/8 in |
| Ram-to-Table Distance - Minimum | 3 in |
| Ram-to-Table Distance - Maximum | 28-3/8 in |
| Base Depth | 27 in |
| Base Width | 20 in |
| Overall Height | 62 in |
| Distance Between Uprights | 19-1/4 in |
| Overall Width | 14 in |
| Overall Depth | 35 in |
| Operating Pressure | 25 Tonf |
| Pump Model Number | Hydraulic |
| Reservoir Capacity | 2.5 qt |
| Hydraulic Hose Length | 66 in |
