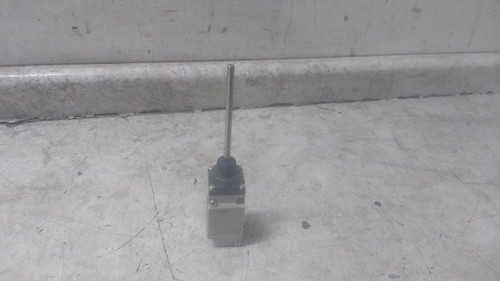

This is an Omron coil spring limit switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Coil Spring Limit Switch |
| Manufacturer Part Number | D4A1116N |
| Actuator Length | 4.19 in |
| Action | Momentary |
| Actuator Type | Coil Spring |
| Pretravel | 5° |
| Operating Torque - Maximum | 13.28 in-lb |
| Total Travel | 5° |
| Series | D4A |
| Mounting Hole Horizontal Center to Center Distance | 29 mm |
| Number of Mounting Holes | 2 |
| Mounting Hole Vertical Center to Center Distance | 59 mm |
| Body Configuration | Plug-In |
| Mounting Hole Diameter | 0.2 in |
| NEMA Enclosure Rating | 1; 2; 3; 4X; 5; 6P; 12; 13 |
| AC Contact Rating | 10 A @ 250 V |
| DC Contact Rating | 0.4 A @ 250 V; 0.8 A @ 125 V; 10 A @ 14 V; 10 A @ 8 V; 6 A @ 30 V |
| Mounting Style | Surface |
| IP Rating | IP67 |
| Electrical Connection | Screw Terminals |
| Directional Movement | CCW/CW |
| Contact Form | SPDT |
| Body Material | Aluminum |
| Actuator Location | Top |
| Body Depth | 1.73 in |
| Body Height | 2.97 in |
| Body Width | 1.65 in |
| Resistance Properties | Shock Resistant |
| Operating Temperature - Minimum | -40 °F |
| Operating Temperature - Maximum | 212 °F |
