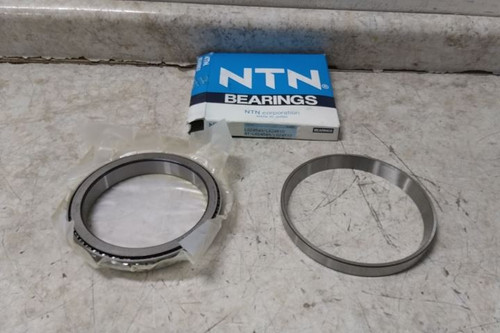

This is an NTN roller bearing assembly. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Roller Bearing Assembly |
| Manufacturer Part Number | 4T-L624549/L624510 |
| Bearing Industry Number | L624549/L624510 |
| Bore Diameter | 4-3/4 in |
| Bore Diameter Tolerance | 0.0000/+0.0010 in |
| Outside Diameter | 6-5/16 in |
| Overall Width | 0.843 in |
| Cone Width | 0.843 in |
| Cup Width | 0.656 in |
| Bore Type | Cylindrical |
| Ring Material | Carbon Steel |
| Ring Material Grade | Case Carburized Grade Steel |
| Cage Material | Pressed Steel |
| Roller Material | Carbon Steel |
| Roller Material Grade | Case Carburized Grade Steel |
| Number of Rows | One |
| Dynamic Radial Load Capacity | 22,900 lbf |
| Static Radial Load Capacity | 48,500 lbf |
| Lubrication Openings | None |
| Flange Type | Non-Flanged |
| Housing Fillet Radius | 0.06 in |
| Shaft Fillet Radius | 0.06 in |
| Maximum Temperature | 250 °F |
| Minimum Temperature | -40 °F |
| ABMA Rating | Class 4 |
| Application | Forestry; Machinery; Mining; Various |
