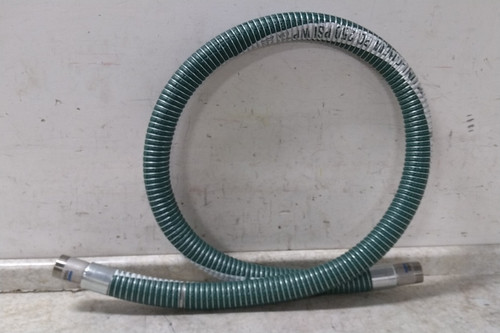

Novaflex CXPG200-10NN Uni-Chem Chemical Composite Hose Assembly
This 2-inch inside diameter by 10-foot long composite chemical hose assembly is rated for 250 PSI working pressure at 70°F. Features 304 stainless steel male NPT (MNPT) coupled end fittings and polypropylene/polyester construction for transferring acids, solvents, and industrial chemicals.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Outer cardboard box also shows minor storage wear.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Chemical Hose |
| Hose Inside Dia. | 2 in |
| Hose Outside Dia. | 2-13/32 in |
| Hose Length | 10 ft |
| Hose Tube Material | Polyester; Polypropylene |
| Hose Cover Material | Polypropylene |
| Hose Color | Green |
| Max. Working Pressure @ 70 F | 250 psi |
| Safety Factor | 4:1 |
| Temp. Range | -40° to 212°F |
| Bend Radius | 6 in |
| Hose Configuration | Coupled Assembly |
| Hose Fitting A Size | 2 in |
| Hose Fitting B Size | 2 in |
| Hose Fitting A Material | 304 Stainless Steel |
| Hose Fitting B Material | 304 Stainless Steel |
| Hose Fitting A Type | MNPT |
| Hose Fitting B Type | MNPT |
| Compatible Chemicals | Acetic Acid (Glacial); Acetic Acid 20%; Acetone; Ammonia (Liquids); Antifreeze (Coolant); Calcium Chloride; Citric Acid 50%; Cyclohexane; DEF; Ethyl (Ethanol); Ethylene Glycol; Formaldehyde 40%; Formic Acid; Glycerin; Heptane; Hexane; Hydrazine; Hydrochloric/Muriatic Acid (20%); Hydrofluoric Acid (20%); Isopropyl (Isopropanol); Kerosene; Methyl (Methanol); Naphtha; Nitric Acid (10% Solution); Nitric Acid (20% Solution); Phosphoric Acid (40% Solution); Sodium Hydroxide/Caustic Soda (20%); Sodium Hydroxide/Caustic Soda (50%); Sodium Hypochlorite/Bleach (to 20%); Stoddard Solvent (Mineral Spirits); Sulfuric Acid (to 10%); Xylene |
| Not Recommended Chemicals | Biodiesel; Diesel Fuel |
| Country of Origin | USA |
