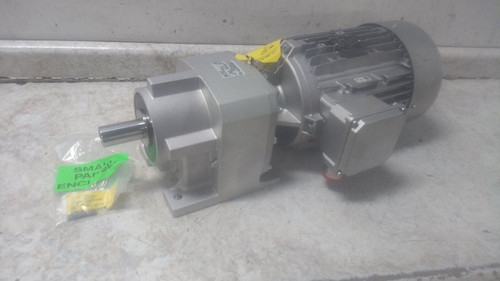

This is a Nord AC gearmotor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | AC Gearmotor |
| Manufacturer Part Number | SK572.1-112MP/4, 19.57 |
| Motor Enclosure | Totally Enclosed Fan-Cooled |
| Nameplate Speed | 90 RPM |
| Maximum Output Speed | 88 RPM |
| No Load Speed | 90 RPM |
| Maximum Torque | 3,540 in-lb |
| Input Horsepower | 5 hp |
| Overhung Load Capacity | 1,109 ft-lb |
| Operating Voltage | 230/460V AC |
| Frequency | 60 Hz |
| Full Load Current | 6.5 A |
| Phase | Three |
| Service Factor | 1 |
| Rotation | CW/CCW |
| Base to Center of Shaft | 4.53 in |
| Shaft Orientation | Inline |
| Number of Output Shafts | 1 |
| Motor Type | 3-Phase |
| Mounting Orientation | Horizontal |
| Thermal Protection | None |
| Motor Insulation Class | F |
| Maximum Ambient Temperature | 104 °F |
| Gear Ratio | 19.57:1 |
| Gear Type | Helical |
| AGMA Gear Class | Class 1 |
| Gear Material | Hardened Steel |
| Brake Type | None |
| Output Shaft Diameter | 1-1/4 in |
| Output Shaft Length | 2-3/4 in |
| Keyway Type | 5/16 in x 5/32 in x 2-1/8 in |
| Keyway Width | 5/16 in |
| Keyway Depth | 5/16 in |
| Keyway Length | 2-1/8 in |
| Bearing Type | Ball |
| Seal Type | Lip |
| Lubrication | Grease Filled |
| Housing Material | Die Cast Aluminum Alloy |
| Housing Material Finish | Unpainted |
| Mount Type | Horizontal |
| Mount Hole Center-to-Center Width | 5.31 in |
| Mount Hole Center-to-Center Length | 6.5 in |
| Overall Length | 25.39 in |
| Length Less Shaft | 22.63 in |
| Overall Width | 10.79 in |
| Overall Height | 8.19 in |
| Application | Power Transmission |
