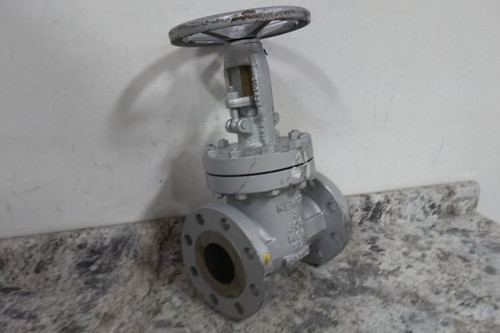

This is a Newco gate valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some heavy cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Gate Valve |
| Manufacturer Part Number | 03-13F-CB2 |
| For Media | Gas; Oil; Steam; Water |
| Body Material | Carbon Steel |
| Nominal Valve Size | 3 in |
| ANSI Flange Class | Class 300 |
| Max. Pressure (CWP) | 755 psi |
| Max. Pressure (Steam) | 425 psi |
| Coefficient of Volume (Cv) | 709 |
| Handle Type | Wheel |
| Handle Material | Cast Iron; Ductile Iron |
| Stem Type | Rising |
| Stem Material | 410 Stainless Steel |
| Wedge Style | Flexible |
| Wedge Material | 410 Stainless Steel |
| Seat Material | Metal |
| Seal Material | Graphite |
| Bonnet Material | Carbon Steel |
| Bonnet Style | Bolted |
| Connection Type | Class 300 Flange |
| Connection Size - Side 1 | 3 in |
| Connection Type - Side 1 | Flange |
| Connection Size - Side 2 | 3 in |
| Connection Type - Side 2 | Flange |
| Media Temp. Range | -20 °F to 800 °F |
| Operating Temperature - Minimum | -20 °F |
| Operating Temperature - Maximum | 800 °F |
| Number of Flange Bolt Holes | 8 |
| Overall Length | 11.09 in |
| Handle Height | 20 in |
