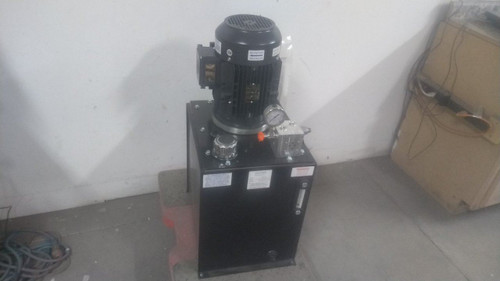

This is a Monarch hydraulic power unit. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some dents on the fan cover of the motor. There are also some cosmetic scuffs and scratches throughout the unit as well as some slight dents. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Power Unit |
| Manufacturer Part Number | T58C405R02S0-01 |
| Frame Design - Hydraulic Power Units | Standard |
| Circuit Design | Single or Double Acting |
| Power Source - Power Units | AC Power |
| HP | 5 hp |
| RPM | 1,800 RPM |
| Voltage | 208-230/460V AC |
| Hertz | 50/60 Hz |
| Number of Phases | 3 |
| Full Load Amps | 13.7-12.4/6.2 A |
| Max. Pressure | 2,000 psi |
| Nominal Flow | 3.7 gpm |
| Reservoir Capacity | 15 gal |
| Overall Length | 20 in |
| Overall Width | 17 in |
| Overall Height | 35 in |
| Mounting Orientation - Power Units | Vertical |
| Pressure Port Thread Size | 3/4"-16 (SAE 8) |
| Return Port Thread Size | 7/8"-14 (SAE 10) |
| NFPA Size | D03 |
