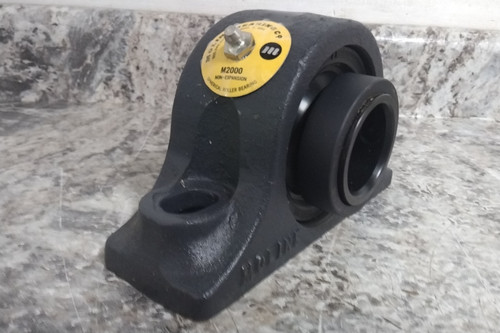

This is a Moline Bearing 19221108 M2000 series 2-bolt spherical roller pillow block bearing with a 1-1/2 inch bore. Built with a heavy-duty cast iron housing and precision spherical roller bearing inserts, this non-expansion unit is pre-lubricated and designed for high load capacity in industrial applications.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches around the bearing. The original factory box shows minor shelf wear and distress. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Pillow Block Bearing |
| Manufacturer Part Number | 19221108 |
| Bearing Insert Type | Spherical Roller |
| Bearing Insert Material | Alloy Steel |
| Bearing Material Grade | 52100 |
| Shaft Locking Type | Set Screws |
| Bore Diameter | 1-1/2 in |
| Bore Type | Cylindrical |
| Maximum Misalignment Angle | 5.5 ° |
| Mount Type | Bolt-Through |
| Number of Mount Holes | 2 |
| Mounting Surface to Shaft Center Height | 1-7/8 in |
| Mount Hole Center-to-Center Length | 5 in |
| Mount Hole Size | 15/16 in |
| Mounting Bolt Size | 1/2 in |
| Included Bearing | Non-Expansion M2000 Spherical Roller |
| Expansion Type | Fixed |
| Housing Material | Cast Iron |
| Overall Length | 6.875 in |
| Overall Width | 2.875 in |
| Overall Height | 3.875 in |
| Base Height | 1.19 in |
| Base Width | 2.19 in |
| Load Direction | Thrust |
| Dynamic Axial Load Capacity | 16,600 lbf |
| Static Radial Load Capacity | 18,300 lbf |
| Maximum Speed | 2,800 RPM |
| Closure | Double Sealed |
| Seal Type | Contact |
| Lubricant Material | Lithium Grease |
| Maximum Temperature | 250 °F |
| Minimum Temperature | -40 °F |
| Application | Air Handling; Conveying; Food Processing; Paper and Forestry; Screening |
| Country of Origin | USA |
