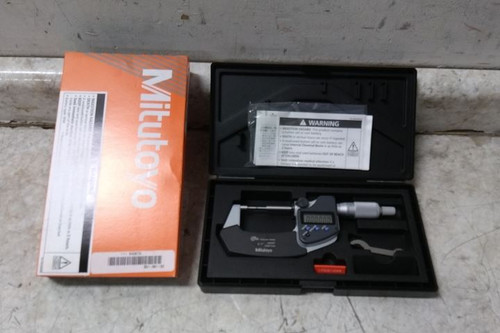

This is a Mitutoyo digital spline micrometer. Please refer to the technical specifications in the listing for more information.
We have inspected this item and the display powers on. We do not have the capability to test the unit any further. There are some slight cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Digital Spline Micrometer |
| Manufacturer Part Number | 331-351-32 |
| Resolution | 0.00005 in |
| Accuracy | ±0.0001 in |
| IP Rating | IP65 |
| SPC Output | Yes |
| Data Output Type | Cabled |
| Long Form Calibration Certificate | No |
| Anvil Shape | Spline |
| Anvil Size | 0.250 in |
| Coolant Resistant | Yes |
| Dimension Type | Inch/Metric |
| Operation Type | Digital |
| Thimble Type | Ratchet |
| Anvil Material | Carbide Tipped |
| Battery Size | SR44 |
| Case Type | Case |
| Compatible Data Output Cable | Mfr. No. 05CZA662; Mfr. No. 05CZA663 |
| Display Type | LCD |
| Functions | Alarm: Low Voltage; Counting Value Composition Error; Data Hold; Data Output; inch/mm Conversion (inch/mm models); Origin-Set; Zero-Setting |
| Lock Nut Type | Lever |
| Maximum Measurement - Inch | 1 in |
| Maximum Measurement - mm | 25.4 mm |
| Minimum Measurement - Inch | 0 in |
| Minimum Measurement - mm | 0 mm |
| Rotating Spindle (Yes/No) | No |
| Spindle Diameter | 18 mm |
| Spindle Material | Carbide Tipped |
| Spindle Size | 0.250 in |
| Spindle Shape | Spline |
