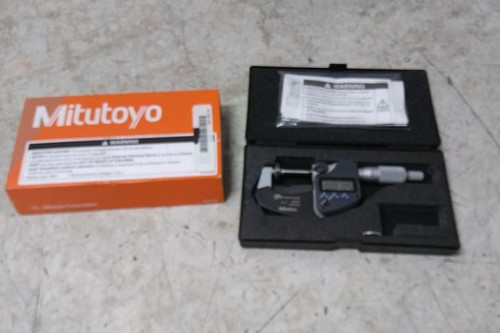

This is a Mitutoyo digital disc micrometer. Please refer to the technical specifications in the listing for more information.
We have inspected and the display powers on. We do not have the capability to test the unit any further. There are some slight cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Digital Disc Micrometer |
| Range | 0 in to 1 in; 0 to 25.4 mm |
| Resolution | 0.00005 in/0.001 mm |
| Accuracy | ±0.0002 in |
| IP Rating | IP65 |
| SPC Output | Yes |
| Data Output Type | Cable |
| Long Form Calibration Certificate | No |
| Anvil Shape | Disk |
| Anvil Size | 0.787 in |
| Coolant Resistant | Yes |
| Dimension Type | Inch/Metric |
| Operation Type | Digital |
| Thimble Type | Ratchet |
| Anvil Material | Steel |
| Battery Size | SR44 |
| Case Type | Case |
| Display Type | LCD |
| Includes Battery | Yes |
| Lock Nut Type | Lever |
| Maximum Measurement - Inch | 1 in |
| Maximum Measurement - mm | 25.4 mm |
| Minimum Measurement - Inch | 0 in |
| Minimum Measurement - mm | 0 mm |
| Rotating Spindle (Yes/No) | Yes |
| Spindle | Disk |
| Spindle Diameter | 18 mm |
| Spindle Material | Steel |
| Spindle Size | 0.787 in |
| Compatible Data Output Cable | Mfr. No. 05CZA662; Mfr. No. 05CZA663 (Sold Separately) |
