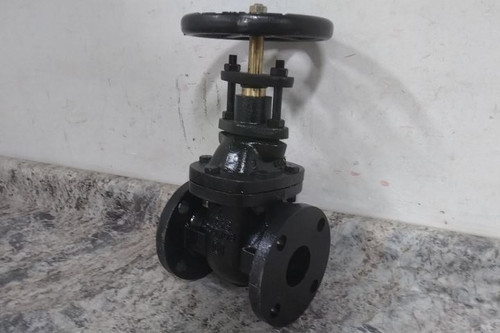

This is a Milwaukee Valve gate valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Gate Valve |
| Manufacturer Part Number | 2882-M 2" |
| For Media | Gas; Oil; Water |
| Body Material | Cast Iron |
| Nominal Valve Size | 2 in |
| ANSI Flange Class | Class 125 |
| Max. Pressure (CWP) | 200 psi |
| Max. Pressure (Steam) | 125 psi |
| Coefficient of Volume (Cv) | 215 |
| Stem Type | Non-Rising |
| Stem Material | Brass |
| Wedge Style | Solid |
| Wedge Material | Cast Iron |
| Seat Material | Bronze |
| Seal Material | Bronze |
| Handle Type | Wheel |
| Handle Material | Cast Iron |
| Bonnet Material | Cast Iron |
| Bonnet Style | Bolted |
| Connection Type | Class 125 Flange |
| Connection Size - Side 1 | 2 in |
| Connection Type - Side 1 | Flange |
| Connection Size - Side 2 | 2 in |
| Connection Type - Side 2 | Flange |
| Media Temp. Range | -40 °F to 353 °F |
| Operating Temperature - Minimum | -40 °F |
| Operating Temperature - Maximum | 353 °F |
| Number of Flange Bolt Holes | 4 |
| Overall Length | 7 in |
| Handle Diameter | 7 in |
| Handle Height | 12.25 in |
