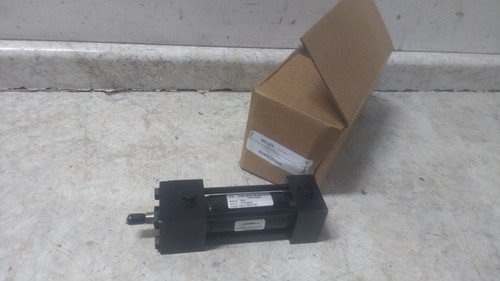

This is a Miller Fluid Power hydraulic cylinder. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Hydraulic Cylinder |
| Cylinder Style | NFPA Tie-Rod |
| Duty Rating | Standard Duty |
| Bore Dia. | 1-1/2 in |
| Stroke Length | 3 in |
| Max. Pressure | 2,500 psi |
| Retracted Length | 8-5/8 in |
| Rod Dia. | 5/8 in |
| Port Size | 1/2 in NPT |
| Single Acting/Double Acting | Double Acting |
| Column Load | 4425 lbf |
| Extended Length | 11-5/8 in |
| Rod Thread Size | 7/16"-20 |
| Temp. Range | -10 to 165 F |
| Piston Material | Steel |
| Piston Rod Material | Stainless Steel |
| Ring Material | Polyurethane |
| Tube Material | Steel |
| Wear Band Material | Non-Metallic |
| Body Material | Steel |
| Tie Rods | Steel |
| Rod Seal Type | Polyurethane |
| Piston Seal Type | Bi-Directional |
| Finish | Black Painted |
