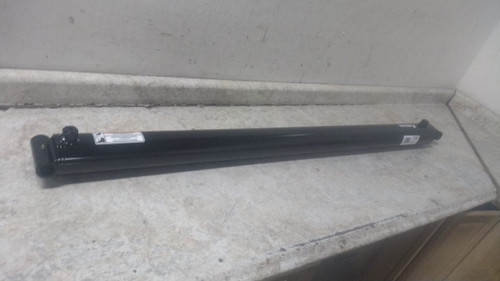

This is a Maxim double acting welded hydraulic cylinder. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install this unit to fully test it. There are some cosmetic scuffs and scratches around the outside of the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Welded Hydraulic Cylinder |
| Single Acting/Double Acting | Double Acting |
| Duty Rating | Heavy Duty |
| Bore Dia. | 3 in |
| Stroke Length | 48 in |
| Rod Dia. | 1-1/2 in |
| Retracted Length | 56 in |
| Extended Length | 104 in |
| Port Size | #8 SAE |
| Max. Pressure | 3,000 psi |
| Column Load | 5,230 lb |
| Temp. Range | -20° to 220°F |
| Piston Material | Ductile Iron |
| Tubes | Precision Honed Steel |
| Rod Seal Type | Polypak |
| Tie Rods | High Tensile |
| Pin Dia. | 1 in |
| Base Mount | Cross-Tube |
| Rod End Mount | Cross-Tube |
| Series | WT |
