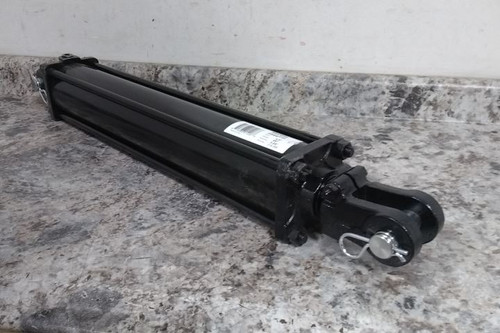

This is a Maxim tie-rod style hydraulic cylinder. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Cylinder |
| Cylinder Style | Tie-Rod |
| Duty Rating | Standard Duty |
| Bore Dia. | 3-1/2 in |
| Stroke Length | 20 in |
| Max. Pressure | 2,500 psi |
| Retracted Length | 30-1/4 in |
| Rod Dia. | 1-1/4 in |
| Port Size | 1/2 in NPT |
| Single Acting/Double Acting | Double Acting |
| Column Load | 10,920 lb |
| Extended Length | 50-1/4 in |
| Temp. Range | -20° to 220°F |
| Piston Material | Ductile Iron |
| Tube Material | Precision Honed Steel |
| Tie Rods | High Tensile |
| Rod Seal Type | Polypak |
| Finish | Black |
| Pin Dia. | 1 in |
