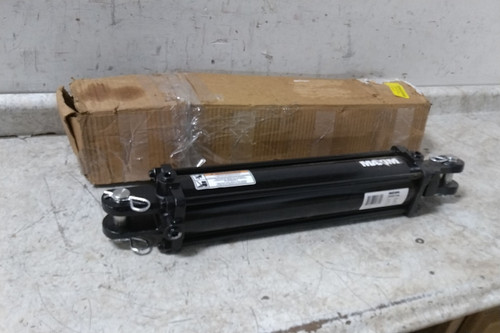

This Maxim 218-353 double-acting tie-rod hydraulic cylinder features a 3.5-inch bore diameter, 16-inch stroke length, and a 1.25-inch rod diameter. Rated for operating pressures up to 2,500 PSI, it delivers dependable linear force for industrial, agricultural, and mobile equipment applications. Includes integrated clevis mounts with mounting pins and retaining clips.
Inspection & Condition Details:
We have inspected this item and we do not have the capability to install the unit to fully test it. Extensive surface scuffs, scratches, and paint chipping are present along the main barrel and end caps due to storage and handling.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Cylinder |
| Cylinder Style | Tie-Rod |
| Duty Rating | Standard Duty |
| Bore Dia. | 3-1/2 in |
| Stroke Length | 16 in |
| Max. Pressure | 2,500 psi |
| Retracted Length | 26-1/4 in |
| Rod Dia. | 1-1/4 in |
| Port Size | 1/2 in NPT |
| Single Acting/Double Acting | Double Acting |
| Column Load | 15,390 lb |
| Extended Length | 42-1/4 in |
| Temp. Range | -20° to 220°F |
| Piston Material | Ductile Iron |
| Tube Material | Precision Honed Steel |
| Tie Rods | High Tensile |
| Rod Seal Type | Polypak |
| Finish | Black |
| Pin Dia. | 1-1/4 in |
