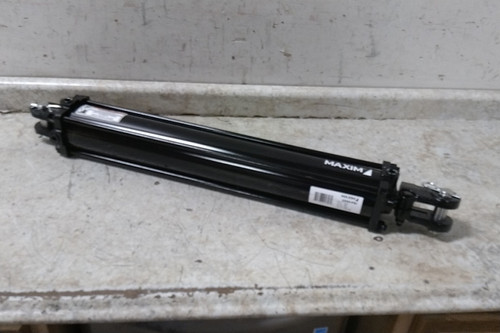

This is a Maxim 218-326 double-acting tie-rod hydraulic cylinder featuring a 3.5-inch bore diameter and a 24-inch stroke length. Rated for a maximum operating pressure of 2,500 PSI, it features a 1.5-inch rod diameter, 1/2-inch NPT ports, precision-honed steel tubing, and ductile iron clevis end mounts.
Inspection & Condition Notes:
We have inspected this item and we do not have the capability to install the unit to fully test it. Minor cosmetic scuffs and scratches are present along the black paint surface and edges from handling/storage.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Cylinder |
| Cylinder Style | Tie-Rod |
| Duty Rating | Standard Duty |
| Bore Dia. | 3-1/2 in |
| Stroke Length | 24 in |
| Max. Pressure | 2,500 psi |
| Retracted Length | 34-1/4 in |
| Rod Dia. | 1-1/2 in |
| Port Size | 1/2 in NPT |
| Single Acting/Double Acting | Double Acting |
| Column Load | 16,650 lb |
| Extended Length | 58-1/4 in |
| Temp. Range | -20° to 220°F |
| Piston Material | Ductile Iron |
| Tube Material | Precision Honed Steel |
| Tie Rods | High Tensile |
| Rod Seal Type | Polypak |
| Finish | Black |
| Pin Dia. | 1 in |
