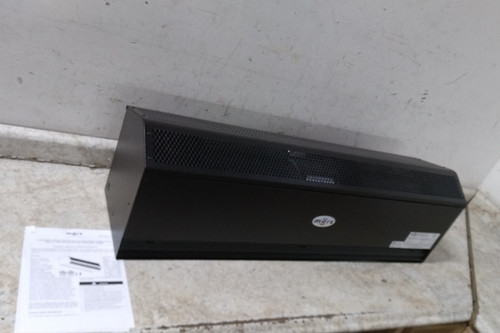

The MARS STD242-1UA-OB Standard 2 Series air curtain is designed for commercial and industrial doorways up to 42 inches wide. It features a heavy-gauge steel housing in obsidian black, a 1/2 HP continuous-duty TEAO motor, and adjustable air directional vanes to deliver effective environmental separation and insect control.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor spins when turned by hand.
Defects noted during inspection include a large dent on the back middle section, a slight bend near the right side vent edge, and moderate outer packaging damage.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Air Curtain |
| Manufacturer Part Number | STD242-1UA-OB |
| Heated/Not Heated | Not Heated |
| HEPA Air Cleaning | No |
| Ultraviolet Air Cleaning | No |
| Sanitation Certified | No |
| Washdown | No |
| Profile Type | Standard Profile |
| Housing Color | Black |
| Housing Material | Steel |
| Finish | Galvanized; Powder Coated |
| Grille Material | Steel |
| For Opening Width | 3-1/2 ft |
| Max. Mounting Height - Environmental | 12 ft |
| Max. Mounting Height - Insects | 10 ft |
| Nameplate Voltage | 115V AC |
| Phase | 1 |
| Frequency | 60 Hz |
| Full Load Current | 5.1 A |
| Power Consumption | 510 W |
| Overall Height | 10-5/8 in |
| Overall Width | 42 in |
| Overall Depth | 13 in |
| Nozzle Width | 42 in |
| Max. Air Volume | 1,418 cfm |
| Max. Air Velocity | 4,865 fpm |
| Maximum Speed | 1,750 RPM |
| Sound Level @ 10 ft | 66 dBA |
| Number of Speeds | 3 |
| Number of Motors | 1 |
| Drive Type | Direct Drive |
| Motor Type | Permanent Split Capacitor |
| Motor Horsepower per Motor | 1/2 hp |
| Motor Enclosure | Totally Enclosed Air Over |
| Control Type | Door Limit Switch |
| Series | STD2 (Standard 2) |
