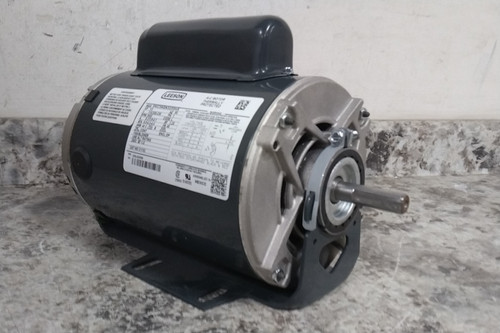

Leeson 1/2 HP General Purpose AC Motor (Model 5KC39QN3220HX)
This 1/2 HP single-phase capacitor-start electric motor features an open dripproof (ODP) enclosure, 3,450 RPM nameplate speed, cradle base mounting, and 115/208-230V AC dual voltage operation. Designed for continuous duty in general industrial and commercial application equipment.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | 5KC39QN3220HX |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| No. of Speeds | 1 |
| HP | 1/2 |
| Nameplate RPM | 3,450 |
| Voltage | 115/208-230V AC |
| Hz | 60 Hz |
| Full Load Amps | 8.2/3.9-4.1 A |
| Duty Cycle | Continuous |
| Frame | 48 |
| Ins. Class | B |
| Inverter Rated | No |
| Length Less Shaft | 9-1/2 in |
| Max. Ambient Temp. | 104 °F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Nominal Efficiency | 66 % |
| Overall Length | 11 in |
| Phase | Single |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1-1/2 in |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Weight | 19 lb |
