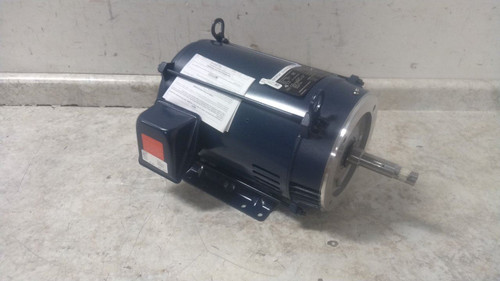

This is a Marathon Motors close-coupled pump motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The mounting is bent. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Close-Coupled Pump Motor |
| Manufacturer Part Number | 215TTDBD6032 |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| No. of Speeds | 1 |
| HP | 10 |
| Nameplate RPM | 1,770 |
| Voltage | 230/460VAC |
| Hz | 60 Hz |
| Phase | Three |
| Full Load Amps | 25.4/12.7 |
| Duty Cycle | Continuous |
| Frame | 215JM |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 °C |
| NEMA Design | B |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque; 2:1 Constant Torque |
| Motor Frame Material | Steel |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4-1/4 in |
| Motor Shaft Design | JM Threaded |
| Conduit Box Position | F1; F2 |
| Conduit Box Location | Exterior |
| Bolt Circle Dia. | 7-1/4 in |
| Motor Bearings | Ball |
| Height | 11 in |
| Overall Length | 19-1/4 in |
| Length Less Shaft | 15 in |
| Body Dia. | 9.5 in |
| Weight | 185 lb |
| CC Number | CC003A |
| Nominal Efficiency | 91.7 % |
