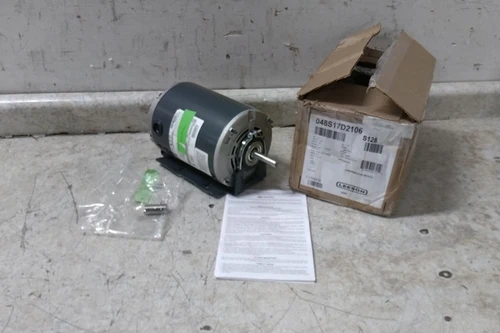

Leeson 048S17D2106 (Catalog No. S128) General Purpose AC Motor
This 1/2 HP, 1725 RPM single-phase 115V AC motor features a 48Z frame, resilient cradle base, split-phase design, and open dripproof (ODP) steel enclosure. Designed for continuous duty, it is suitable for fans, blowers, and general commercial/industrial equipment.
Inspection & Condition Details:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | 048S17D2106 |
| Motor Application | General Application |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Duty Cycle | Continuous |
| No. of Speeds | 1 |
| HP | 1/2 |
| Nameplate RPM | 1,725 |
| Voltage | 115V AC |
| Hz | 60 Hz |
| Full Load Amps | 9.2 A |
| Frame | 48Z |
| Ins. Class | B |
| Length Less Shaft | 8-5/16 in |
| Max. Ambient Temp. | 104 °F |
| Motor Bearings | Ball |
| Nominal Efficiency | 65 % |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Overall Length | 10-1/4 in |
| Phase | Single |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1-7/8 in |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Weight | 17 lb |
| Catalog Number | S128 |
