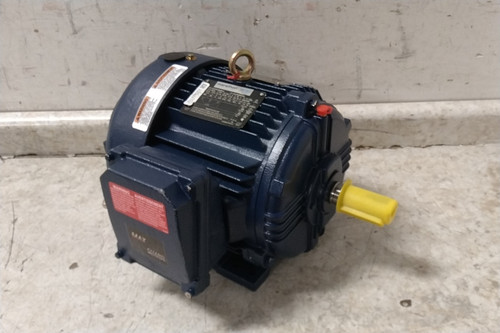

Marathon XRI-841 Severe Duty Electric Motor (Model 184THFCD9026BC M / Cat No. W525A)
This heavy-duty 5 HP three-phase electric motor is engineered for demanding industrial environments. Key features include a 184T cast iron frame, 1755 RPM rated speed, 460V AC voltage rating, and a Totally Enclosed Fan Cooled (TEFC) enclosure for superior protection against dust and moisture.
Inspection & Condition Notes:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hazardous Location Motor |
| MFR # | 184THFCD9026 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Length Less Shaft | 13 3/8 in |
| Overall Length | 16 3/16 in |
| Lead Length | 3" to 8" |
| No. of Speeds | 1 |
| HP | 5 hp |
| Nameplate RPM | 1,755 RPM |
| Voltage | 460V AC |
| Hz | 60 Hz |
| Full Load Amps | 6.5 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 184T |
| Hazardous Location Class | Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D |
| Motor Thermal Protection | None |
| Motor Mounting Type | Rigid Base |
| Includes | Breather/Drain |
| CC Number | CC003A |
| Nominal Efficiency | 89.5 % |
| Max. Ambient Temp. | 40 Degrees C |
| Duty | Continuous |
| Ins. Class | H |
| Motor Shaft Design | Keyed |
| Motor Efficiency Group | NEMA Premium Efficient |
| RPM Group | 1701-1800 |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC |
| Motor Shaft Rotation | CW/CCW |
| Frame Material | Cast Iron |
| Motor Application | Severe Duty |
| Motor Frame Material | Cast Iron |
| Temp. Code | T2B |
| NEMA Design | B |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Usable @ 200V | Not Usable at 200V |
| Usable @ 208V | Not Usable at 208V |
| Inverter Rated | Inverter Rated |
| Motor Mounting Position | Horizontal |
| Weight | 109 lb |
