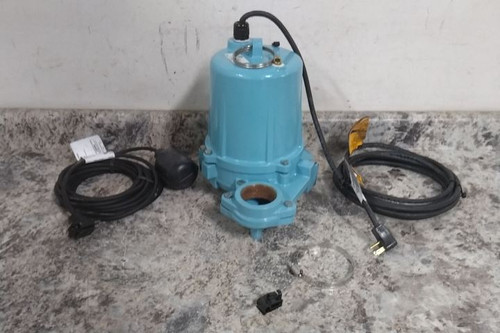

This is a Little Giant effluent pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and it powers on when plugged in. We do not have the capability to test the unit any further. It appears to have leaked some oil/fluid and there is some slight corrosion on the connection. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Effluent Pump |
| Series | WS |
| Manufacturer Part Number | WS30AM |
| Switch | Piggyback Tether Float |
| For Media Type | Effluent Water; Grey Water |
| Power Source | Corded Electric |
| Phase | Single |
| Rated Voltage | 115V AC |
| HP | 1/2 hp |
| Current | 10.4 A |
| Motor Housing Material | Cast Iron |
| Volute Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Seal Material | Carbon/Ceramic/Nitrile Rubber |
| Flow Rate @ 10' of Head | 90 gpm |
| Flow Rate @ 20' of Head | 45 gpm |
| Max. Head | 28 ft |
| Max. Dia. Solids | 3/4 in |
| Max. Media Temp. | 120 °F |
| Off Point | 28 ft |
| Duty Cycle | Continuous |
| Cord Length | 20 ft |
| NEC Cord Designation | SJOW |
| Shaft Seal Type | Single Mechanical |
| Discharge | 2 in FNPT |
| Requires Control Panel | No Control Panel Required |
| Body Dia. | 9-3/8 in |
| Overall Height | 11-1/4 in |
