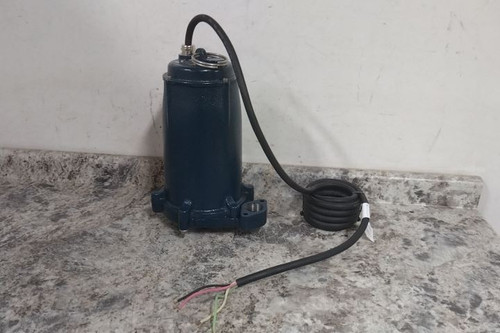

This is a Little Giant sewage grinder pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. A piece has cracked/broken off near the bottom. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Sewage Grinder Pump |
| Series | IGP |
| Manufacturer Part Number | IGP-M231-15 |
| For Media Type | Sewage Water |
| Power Source | Corded Electric |
| Horsepower | 2 hp |
| Motor Speed | 3,450 RPM |
| Rated Voltage | 230VAC |
| Current | 13.9 A |
| Phase | Single |
| Motor Housing Material | Cast Iron |
| Volute Material | Cast Iron |
| Impeller Material | Brass |
| Shaft Seal Material | Carbon/Ceramic |
| Flow Rate @ 10' of Head | 33 gpm |
| Max. Head | 130 ft |
| Max. Media Temp. | 104 °F |
| Duty Cycle | Continuous |
| Cord Length | 15 ft |
| Discharge | 1-1/4 in FNPT |
| Discharge Orientation | Vertical |
| Requires Control Panel | Control Panel Required |
| Motor Design | Capacitor-Start/Run |
| Application | Waste Removal |
| Width at Widest Point | 11-1/2 in |
| Overall Width | 11-3/8 in |
| Overall Length | 9-5/8 in |
| Overall Height | 16-1/8 in |
