The Little Giant EC-1U-DV (553527) is a slim undermount mini-split condensate removal pump system designed for wall-mounted ductless air conditioning units. Featuring 110–240V dual voltage operation at 50/60 Hz, it delivers a maximum flow rate of 2.5 GPH at 1 ft of head and up to a 33 ft shut-off head. Its compact undermount enclosure installs directly beneath wall-mounted units for automatic condensate removal when gravity-feed drainage is not available.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. It appears to have gotten wet during storage.

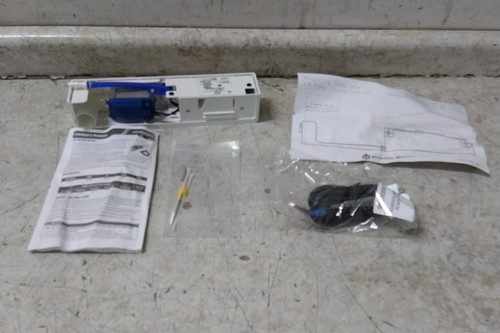

Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Condensate Removal Pump |
| Series | EC-1U-DV |
| Manufacturer Part Number | 553527 |
| Pump Type | Mini-Split Condensate Removal Pump |
| Compatible Media Type | Clear Water |
| Power Source | Corded Electric |
| Phase | Single |
| Nameplate Voltage | 110-240V AC |
| Full Load Current | 0.18 A |
| Frequency | 50/60 Hz |
| Tank Material | Plastic |
| Maximum Flow Rate @ 1 Foot of Head | 2.5 gph |
| Maximum Flow Rate @ 5 Feet of Head | 1.8 gph |
| Maximum Flow Rate @ 10 Feet Head | 1.5 gph |
| Maximum Flow Rate @ 15 Feet of Head | 1.5 gph |
| Maximum Flow Rate @ 20 Feet of Head | 1.25 gph |
| Maximum Flow Rate @ 25 Feet of Head | 1.1 gph |
| Maximum Flow Rate @ 30 Feet of Head | 1 gph |
| Max. Head | 33 ft |
| Maximum Operating Pressure | 26 psi |
| Minimum Media Temperature | 33 °F |
| Max. Media Temp. | 140 °F |
| Tank Capacity | 0 gal |
| Tank Opacity | Translucent |
| Number of Intakes | 1 |
| Intake | 1 in Open |
| Discharge | 1/4 in Barbed |
| Pump Activation Type | Electrically Activated |
| Includes Safety Switch | No Safety Switch Included |
| Turn On Level | 0.45 in |
| Shut Off Level | 0.37 in |
| Electrical Connection Type | Hardwired |
| Cord Length | 4.9 ft |
| For HVAC System Duct | Ductless |
| Plenum Rated | No |
| Minimum Ambient Temperature | 32 °F |
| Maximum Ambient Temperature | 140 °F |
| Overall Length | 11.12 in |
| Overall Width | 2.31 in |
| Overall Height | 2.19 in |
| Application | Condensate Removal |
| Installation | Pedestal-Mount |
| Pump Technology | Centrifugal |
| Priming | Self-Priming |
