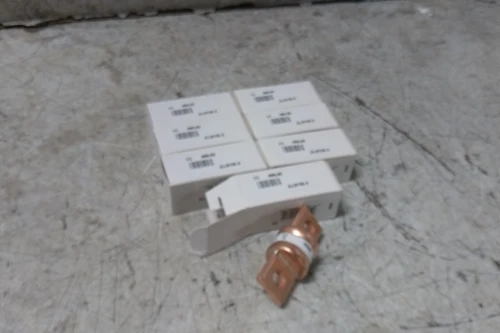

This is a package of 7 Littelfuse JLLN150 Class T fast-acting power fuses rated for 150 Amps and 300V AC / 125V DC. Designed for space-saving, high-interrupting rating overload and short circuit protection.
We have inspected this item and we do not have the capability to install the unit to fully test it. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Fuse |
| Manufacturer Part Number | JLLN150 |
| Series | JLLN |
| Equivalent Brand and Series | Bussmann JJN; Edison TJN; Littelfuse JLLN; Mersen A3T |
| Body Material | Melamine |
| AC Voltage Rating | 300 V AC |
| Compatible Fuse Block Series | LFT |
| Current Rating | 150 A |
| DC Voltage Rating | 125 V DC |
| Element | Single |
| Fuse Body Style | Bolt-On |
| Fuse Block Style | Rejection |
| Fuse Class or Type | T |
| Interrupt Rating - AC | 200 kA |
| Interrupt Rating - DC | 20 kA |
| Overall Diameter | 7/8 in |
| Overall Length | 2-7/16 in |
| Overall Width | 1-1/16 in |
| Speed | Fast-Acting |
| Visual Indication | Non-Indicating |
