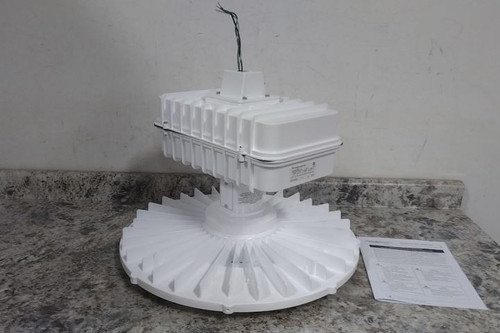

This is a Lithonia Lighting LED high bay. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | LED High Bay |
| Bay Light Type | High Bay |
| CA Title 24 Compliant | No |
| Color Temperature | 5000K |
| Dimmable | Yes |
| For Bulb Base Type | Integrated LED |
| For Bulb Shape | Integrated LED |
| For Bulb Type | Integrated LED |
| Overall Height | 16-5/8 in |
| Ingress Protection Rating | 65 |
| Lamp Type | Integrated LED |
| Lamp Watts - Fixtures | 131 W |
| LED Replacement For | 400W MH/HPS |
| Overall Length | 22-3/8 in |
| Lens Material | Glass |
| Light Distribution | Narrow |
| Lighting Technology | LED |
| Lumens | 19,179 lm |
| Lumens per Watt | 146 lm/W |
| Max. Fixture Wattage | 131 W |
| Max. Ambient Temp. | 149 °F |
| Min. Ambient Temp. | -40 °F |
| Rated Life | 100,000 hr |
| Reflector Type | Enclosed |
| Suggested Fixture Mounting Height | Up to 60 ft |
| Voltage | 347 to 480V |
| Overall Width | 22-3/8 in |
| Ambient Temp. Range | -40° to 149°F |
| Bulbs Included | Integrated |
| Emergency Battery Backup | No |
| Housing Color | White |
| Housing Material | Aluminum |
| Number of Light Bars | 4 |
| Suggested Fixture Mounting Height Range | 40 to 60 ft. |
| Fixture Mounting Type | Hook; Pendant |
| Series | JHBL |
