The Lithonia Lighting CPRB ALO13 120 SWW9 80CRI PM CPTLW DWH is a Compact Pro LED round high bay light fixture designed for commercial and industrial ceiling illumination. It features selectable lumen output (12,000 / 15,000 / 18,000 lm) and switchable color temperature (4000K / 5000K) with a 120V input and attached twist-lock plug cord assembly.
Condition & Inspection Notes:
We have inspected this item and we do not have the capability to fully test it. The fixture could not be functionally tested due to a specialized twist-lock plug connection. There are some slight cosmetic scuffs and scratches throughout the unit.

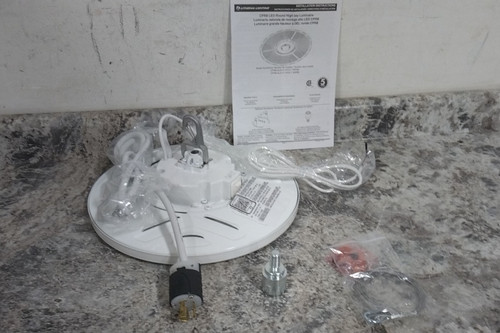

Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | LED Round High Bay |
| Manufacturer Part Number | CPRB ALO13 120 SWW9 80CRI PM CPTLW DWH |
| Bay Light Type | High Bay |
| Bulbs Included | Integrated |
| Color Rendering Index | 80 |
| Color Selectable | Selectable |
| Color Temperature | 4000K; 5000K |
| Cord Length | 6 ft |
| Dimmable | Yes |
| Emergency Battery Backup | No |
| Fixture Wattage | 132 W |
| For Bulb Shape | Round |
| For Bulb Type | LED |
| Housing Color | White |
| IP Rating | IP5X |
| LED Replacement For | (4) lamp T5HO (6) lamp T8 HBF 250W MH |
| Lamp Type | LED |
| Lens Material | Polycarbonate |
| Light Distribution | General, General |
| Light Output | 12,000 lm; 15,000 lm; 18,000 lm |
| Lighting Technology | LED |
| Lumen Selectable | Selectable |
| Min. Ambient Temp. | -40 °C |
| Max. Ambient Temp. | 55 °C |
| Mounting Style | Ceiling; Suspended |
| Nominal Length | 13 in |
| Nominal Width | 13 in |
| Number of Bulbs | 0 |
| Overall Height | 3-3/16 in |
| Overall Length | 13 in |
| Overall Width | 13 in |
| Power Source | Plug-In |
| Series | CPRB |
| Suggested Mounting Height - Minimum | 12 ft |
| Suggested Mounting Height - Maximum | 25 ft |
| Suggested Mounting Height Range | 12 ft – 25 ft |
| Voltage | 120 to 277V AC |
