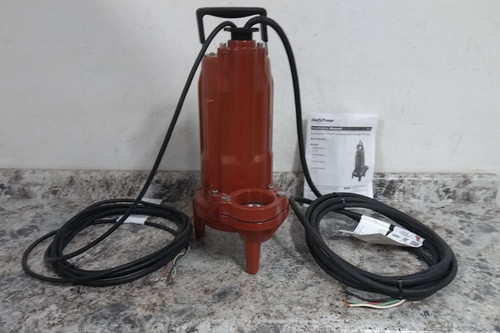

The Liberty Pumps XLE104M-2 is a 1 HP, 3-phase, 440-480V AC explosion-proof submersible sewage pump designed for hazardous locations. It features heavy-duty cast iron construction, dual mechanical shaft seals, a 2-vane semi-open cast iron impeller, and a 25 ft power cord.
Inspection Notes: We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. Impeller spins freely by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Sewage Ejector Pump |
| Manufacturer Part Number | XLE104M-2 |
| Series | XLE100 |
| For Media Type | Sewage Water |
| Power Source | Corded Electric |
| Phase | Three |
| Rated Voltage | 440 to 480V AC |
| Horsepower | 1 hp |
| Frequency | 60 Hz |
| Current | 4.2 A |
| Motor Housing Material | Cast Iron |
| Volute Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Seal Material | Silicon Carbide |
| Flow Rate @ 10' of Head | 170 gpm |
| Max. Head | 43 ft |
| Max. Dia. Solids | 2 in |
| Max. Media Temp. | 104 °F |
| Switch | Not Included |
| Duty Cycle | Continuous |
| Cord Length | 25 ft |
| Shaft Seal Type | Double Mechanical |
| Discharge | 2 in FNPT; 3 in FNPT |
| Discharge Orientation | Vertical |
| Motor Speed | 3,450 RPM |
| Requires Control Panel | Control Panel Required |
| Body Dia. | 13-1/8 in |
| Width at Widest Point | 13-1/8 in |
| Overall Height | 21-3/4 in |
| Country of Origin | USA |
