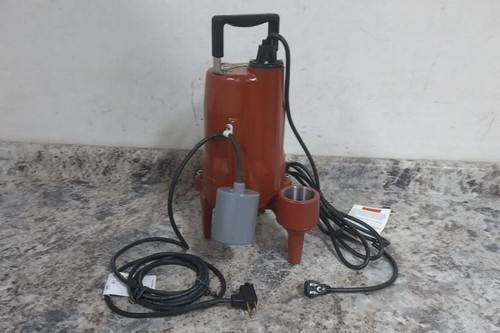

This is a Liberty Pumps grinder pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and it powers on when plugged in. We do not have the capability to install the unit to test it any further. There are some cosmetic scuffs and scratches throughout the unit and the handle is slightly bent. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Grinder Pump |
| Manufacturer Part Number | PRG101A |
| Switch Actuation | Tether Float |
| Switch Electrical Connection | Piggyback |
| HP | 1 hp |
| RPM | 3,450 RPM |
| Rated Voltage | 115V AC |
| Hz | 60 |
| Phase - Pumps | 1 |
| Amps | 12 A |
| Motor Type | CSCR |
| Body Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Seal Material - Pumps | Silicone Carbide |
| Off Point | 6-1/2 in |
| On Point | 13.5 in |
| Flow Rate @ 10 Ft. of Head | 42 gpm |
| Flow Rate @ 15 Ft. of Head | 39 gpm |
| Flow Rate @ 20 Ft. of Head | 36 gpm |
| Flow Rate @ 40 Ft. of Head | 15 gpm |
| Max. Head | 50 ft |
| Min. Sump Pit Dia. | 24 in |
| Body Dia. | 11 in |
| Overall Height | 17-3/4 in |
| Cord Length | 10 ft |
| Discharge | 2 in FNPT |
| Overall Length | 13-1/2 in |
| Max. Diameter Solids | 2 in |
| Max. Liquid Temp. | 140 °F |
| Duty Cycle | Intermittent |
| Thermal Protection | Yes |
