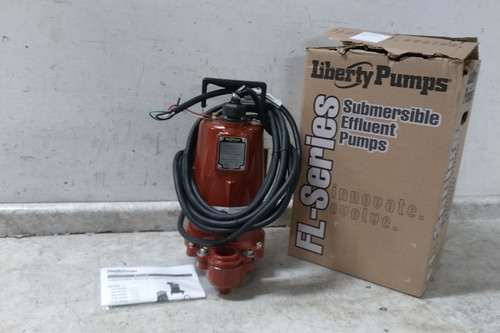

This is a Liberty Pumps FL103M-2 1 HP submersible effluent pump designed for high-head dewatering, STEP systems, liquid waste transfer, and mound systems. Features heavy cast iron construction, dual shaft seals, a 2-inch FNPT discharge, and a 25-foot SEOOW power cord designed for 208-230V AC 3-phase operation.
Inspection & Condition Details:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The internal impeller and motor shaft move freely. Cosmetic scuffs and light scratches are visible on the top handle and body casing, and the box has shelf wear. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Effluent Pump |
| Series | FL 100 |
| Manufacturer Part Number | FL103M-2 |
| For Media Type | Effluent Water |
| Power Source | Corded Electric |
| HP | 1 hp |
| Phase | Three |
| Rated Voltage | 208 to 230V AC |
| Frequency | 60 Hz |
| Current | 9 A |
| Motor Housing Material | Cast Iron |
| Volute Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Seal Material | Carbon/Ceramic |
| Flow Rate @ 10' of Head | 103 gpm |
| Flow Rate @ 20' of Head | 97 gpm |
| Flow Rate @ 40' of Head | 82 gpm |
| Max. Head | 90 ft |
| Max. Dia. Solids | 3/4 in |
| Max. Media Temp. | 104 °F |
| Switch | Not Included |
| Duty Cycle | Continuous |
| Cord Length | 25 ft |
| NEC Cord Designation | SEOOW |
| Shaft Seal Type | Single Mechanical |
| Impeller Design | Vortex |
| Discharge | 2 in FNPT |
| Min. Sump Pit Dia. | 24 in |
| Hazardous Location Class | Not Rated |
| Includes Alarm | No Alarm Included |
| Requires Control Panel | Control Panel Required |
| Country of Origin | USA |
